Share your switches setup

Post by btsbarton » Tue Dec 24, 2019 5:19 pm

Share pictures and details of how your accessories switches (air compressor, off road lights, etc) are installed in your truck!

Gremlin4x
Posts: 7
Joined: Tue Oct 30, 2018 9:42 pm
Model Year: 2018

Re: Share your switches setup

Post by Gremlin4x » Wed Jan 01, 2020 11:23 pm

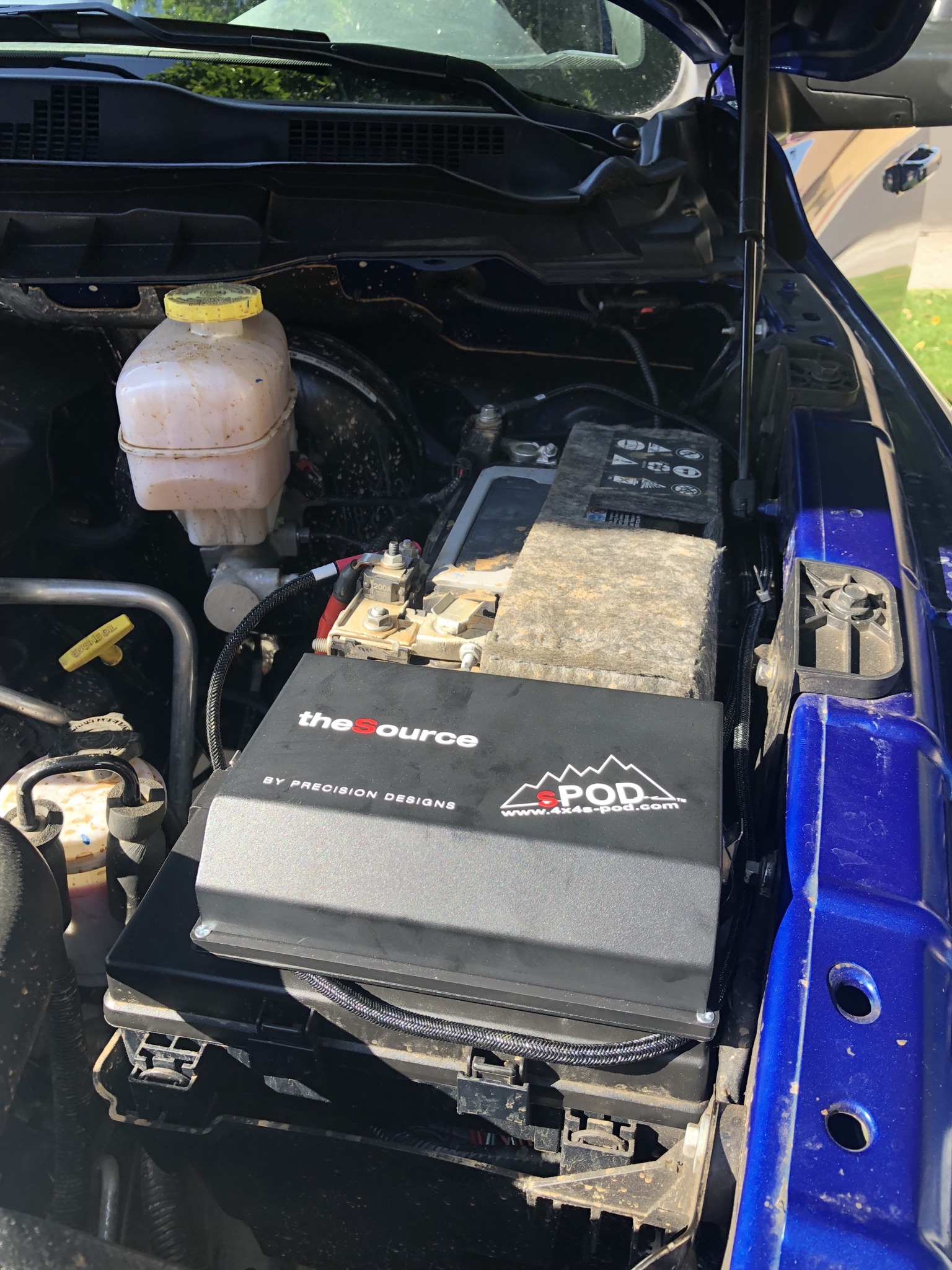

I’m using an AEV switch bezel with an sPod. I installed it about a year ago, was super straight forward and I’ve been really pleased with it. I wanted old school switches as apposed to some of the cooler options out there. Up here in the North Country we tend to use our lights pretty regularly and I wanted to be able operate them while wearing gloves.
Attachments

User avatar
Mule
500_Posts
500_Posts
Posts: 567
Joined: Sat Nov 22, 2014 2:29 am
Location: Rocky Mtns
Contact:

Re: Share your switches setup

Post by Mule » Thu Jan 02, 2020 7:17 pm

Custom center console for stuff, inverter tucked under there along with some DC distribution and duplex outlet.
3d-printed plates for USB charger (standalone USB goes to the headunit) and inverter switch.


Lightbar is on a switch by my knee. Camera DVR pendant next to it.

Cheapo chinese/amazon curved light bar, "180 watts" (around 120 in reality). For $50, it's been great.

I'm bouncing around ideas for my next truck... if i've got lights/accessories on the truck, camper, and a trailer, why not make them all controllable from one touch-screen display? Put the I/O on an ethernet controller and use wifi to connect truck/trailer/camper together? Keep it all on an in-vehicle routed network, doesn't need to go to internet.
Could feed hard-switches to inputs on the computer and link them in software, mapping a switch to output(s). :geek:

User avatar
verdesardog
500_Posts
500_Posts
Posts: 989
Joined: Thu May 31, 2012 11:24 am
Model Year: 2006

Re: Share your switches setup

Post by verdesardog » Thu Jan 02, 2020 8:40 pm

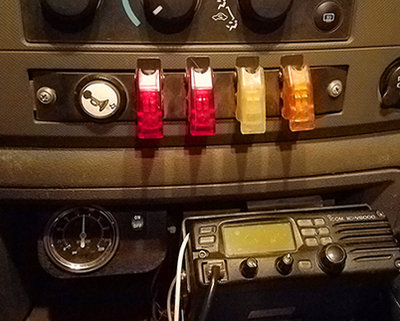

Lighted safety switches for Fire truck air horn, driving lights, ditch lights, backup lights and front and rear strobes:
The attachment 1.jpg is no longer available
2006 Big Horn 2500 Ram CTD. IMAGINE ALL THE PEOPLE LIVING LIFE IN PEACE

User avatar
verdesardog
500_Posts
500_Posts
Posts: 989
Joined: Thu May 31, 2012 11:24 am
Model Year: 2006

Re: Share your switches setup

Post by verdesardog » Thu Jan 02, 2020 8:40 pm

with switches off:
Attachments
2006 Big Horn 2500 Ram CTD. IMAGINE ALL THE PEOPLE LIVING LIFE IN PEACE

btsbarton
50_Posts
50_Posts
Posts: 71
Joined: Thu Nov 21, 2019 8:15 am
Model Year: 2019

Re: Share your switches setup

Post by btsbarton » Thu Jan 28, 2021 12:18 am

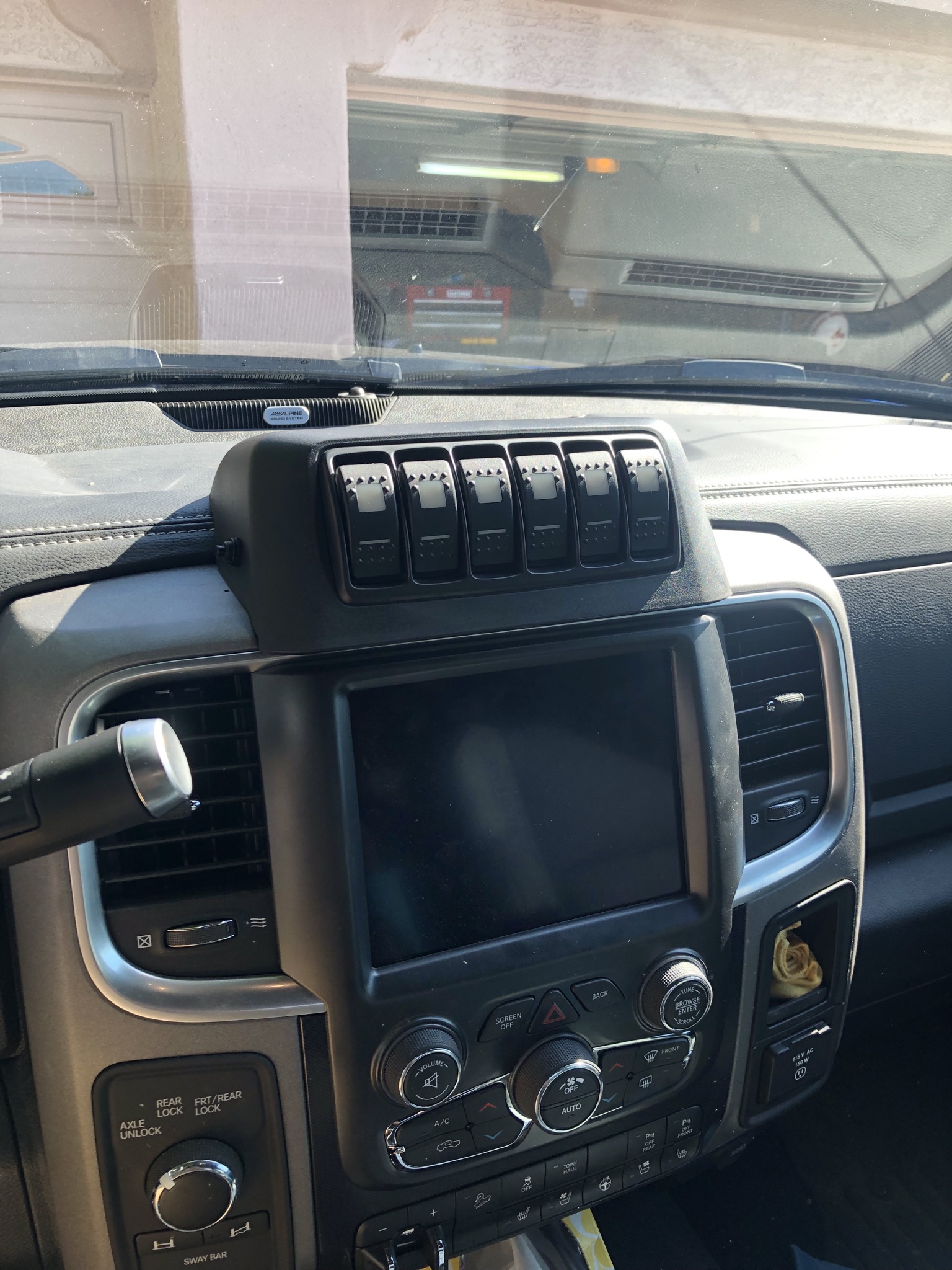

I’ll bump my own thread. I went with SwitchPros 9100. Was able to perfectly color match the backlighting to match the rest of the interior, the SQHQ panel mount is right below the headlights switch, no glare and I don’t really need to look at my switches while I’m driving.
Only the rock lights are hooked up so far. Need to make a bracket for the air compressor(under rear seat) and then finish wiring it in. I don’t have the other lights yet but wiring them in will be easy once I do!
Attachments

User avatar
Mule007
500_Posts
500_Posts
Posts: 767
Joined: Mon May 16, 2016 9:27 pm
Model Year: 2015
Location: Colton, Oregon

Re: Share your switches setup

Post by Mule007 » Fri Jan 29, 2021 8:57 am

:idea: :rockon: Good looking setups, nicely done to all!
:patriot: SOLD: Never forgotten: Mule - 2005 Power Wagon, “Laramie”
NEW: “Bear”: 2015 Ram 2500 Tradesman 4WD, Crew cab, 68K miles; 2nd Owner-Power steering, windows, brakes, Tip start, heated tow mirrors; Sirius, blue tooth, Alpine 6 speakers; 35% tinted windows, Black, diesel gray, silver interior; Systems: Driver Info Displays; TPMS, ESC; Power converter; AC; ERS controls on shifter. Anti theft system, vehicle immobilizer. Engine: 6.4L Hemi, Auto. HD 6-66RFE-6 speed transmission; 3.73:1 gears; 1 ton
transmission oil cooler; 2-speed electric shift BW44-46 4WD shift on fly; Trans. skid plate. Axels: F-5,500 #; R-6,100#; Solid front, Anti- slip differential rear; Tow Pkg:: Rough Country 2.5” lift; Tekonsha Prodigy P2 trailer brake, HD Coil Springs, Bilstein B8 5100 shocks, WD hitch, F/R HD stabilizer bars; rear track bar; sway control; Tow Haul Mode, brake assist; Hill control; recalls completed; 5” oval SS steps; Brakes: Extreme Z36 Truck and Tow Drilled/Slotted F&R rotors & pads; Wheels: XD KMC235 Grenade Crawl bead-lock wheels;
Upgrades: CB; Uniden Pro 520XL; Tonneau: Extant Endure ALX cover; Alternator: HD Denso 180 amp; Battery: Interstate MTZ-AGM 94RH7 Premium 830CCA; Tires: Dean Back Country A/T2-35/1250R-18/12, MP3; Floor mats: Husky X-act contour; Muffler: FX catback #71416 SS after axle exit; Car Seat covers: Caterpillar Black/Grey front seat covers :patriot:

MTBryan
Posts: 1
Joined: Fri Oct 23, 2020 8:48 am
Model Year: 2019

Re: Share your switches setup

Post by MTBryan » Mon Feb 01, 2021 11:30 am

Interesting btsbarton. I'm installing an Auxbeam and the control panel looks the same as yours.
That's the removable plate right? I was considering installing mine there but it seems like it tilts too far down?

Sent from my SM-G986U using Tapatalk


User avatar
Retired BLM Rig
1000_Posts
1000_Posts
Posts: 1209
Joined: Sun Jan 31, 2016 6:51 pm
Model Year: 2008
Location: State of Jefferson

Re: Share your switches setup

Post by Retired BLM Rig » Mon May 31, 2021 11:32 am

I finally decided to add some switches to my truck, I went with an inexpensive panel and remote relay/fusebox setup. The reason I chose this option is because it's compact and I like the fact that it uses traditional relays and fuses that are serviceable. The newer, more expensive units use integrated circuits that are non-serviceable, so if one mosfet dies, you have to replace the whole unit.


I used a piece of aluminum angle to mount the control box to the top of the A/C condenser fan shroud.

The switch panel fits perfectly behind the turn signal switch and I didn't have to drill any holes to mount it.

The only downside is that there's a reflection on the drivers door glass that's perfectly centered in the rearview mirror : (

The steering wheel blocks the glare at night and I've kinda gotten used to the reflection in the window. The newer version of this system offers a dimmable switch panel. My total investment was less than $70

User avatar
jeep_boy02
1000_Posts
1000_Posts
Posts: 1098
Joined: Sat Feb 16, 2013 1:21 pm

Re: Share your switches setup

Post by jeep_boy02 » Tue Jun 01, 2021 10:36 am

I've got the RAM aux switches mounted in my dash, I love the "factoryness" of it but I'm going to be adding corbeau seat heaters before winter hits. Does any one know if the center 3 "unused" buttons have a circuit board behind them or are they ok to drill a hole through to mount the switches that come with the heaters?

Sent from my SM-A015A using Tapatalk

2010 black pearl(PXR) on 35s, bypass harness, gooseneck, CAI, 3" magnaflow catback, bulldog hemi GT.... more to come soon
