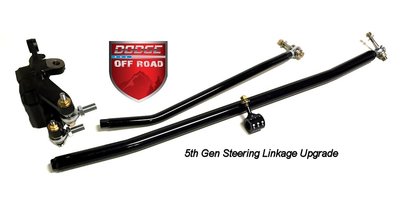

2" OD x .250" wall DOM tie rod
1.5" OD x .250" wall DOM drag link
4140 chromoly tapered bolts for a totally bolt-in install
303 stainless misalignment hardware
4130 chromoly 7/8" shank heim joints
The linkage is powdercoated semi gloss black
This is a product that really sells itself, I'm not going to spend a ton of time on describing it. It's huge, it is insanely strong compared to the stock junk, it bolts right in. It's harder to adjust but once you set it, you don't have to mess with it again because there is no adjuster to jump threads. We have a lot of guys who keep the factory tie rod (knuckle to knuckle) but run our drag link for the extra misalignment, if your suspension has more travel than stock you really need to address that one way or another. We have had several customers call us in a panic when their stock steering lets go, they don't want to put it back on and have us overnight them a new linkage. At one point, Ram didn't even have the steering in stock and we were the only place in the world selling replacements - that was nice.


Full linkage (tie rod and drag link both): http://store.dodgeoffroad.com/Dodge-Off ... p_166.html

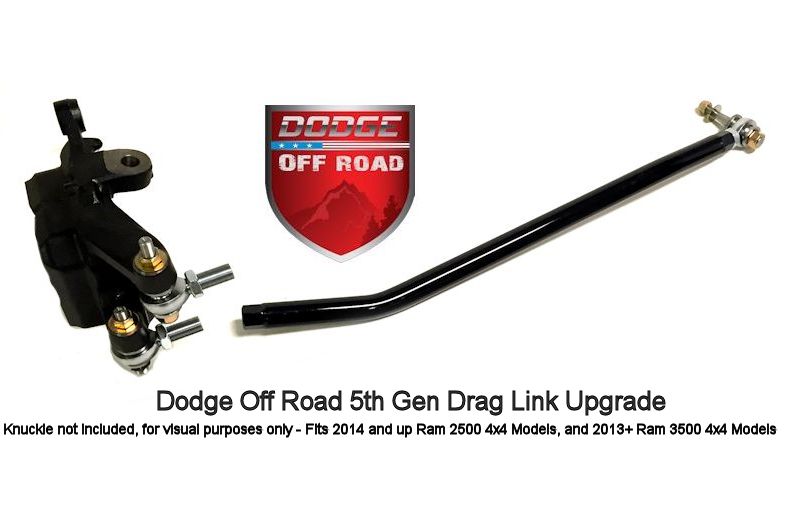

Drag link only: http://store.dodgeoffroad.com/Dodge-Off ... p_229.html

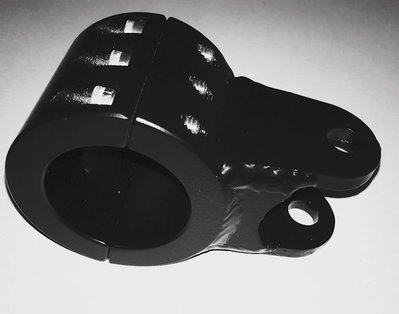

Stabilizer clamp:
The only complaint we have ever gotten on this linkage is that the tie rod can flop up and down if you are going fast off road, if you guys know Holman Offroad, Jeff was the one who told me about that issue. For those who think they will be desert racing, we can make you a straight tie rod that is 1.5" OD x .400" wall, and it will not move at all. We run the 2" OD for everyone else because it matches the factory steering linkage OD (nobody wants to buy one that is smaller than stock, even if it's stronger - it also works with all the dual stabilizer clamps the diesel bros have to have) and because it's easier to make. The .400" wall stuff mentioned above is sleeved and the tube adapters are hard to get, so we don't do that unless it's necessary for a race truck or someone who just really wants it.
Any questions, feel free to ask.
