Front Locker Disc. Harness

If it's about Power Wagons, all generations, this is where it'll go. This is the original PWR Forum Power Wagon Technical Discussion Section. And this includes everything that doesn’t fit in any one of the other categories related to the truck goes here!
Post Reply
Ajchampion2018
Posts: 4
Joined: Sat Apr 13, 2019 3:14 pm
Model Year: 2018

Front Locker Disc. Harness

Post by Ajchampion2018 » Sat Apr 13, 2019 3:37 pm

I ripped the wires out of my front differential harness. Can somebody take a picture of their harness so I can match the four wires going into it at the differential? It’s a 2018 truck. All four wires are yellow with different tracers. Thanks
Top
User avatar
coder
1000_Posts
1000_Posts
Posts: 1346
Joined: Wed Jun 06, 2012 5:18 pm
Model Year: 2007
Location: Trabuco Canyon, CA

Re: Front Locker Disc. Harness

Post by coder » Mon Apr 15, 2019 9:00 pm

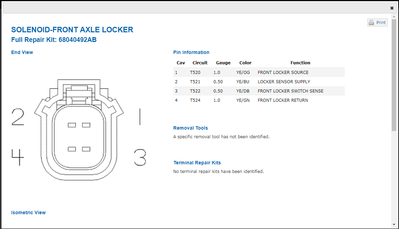

Here's a link and screen-shot of the 2011 front locker harness connector replacement kit it has the colors of the wires mapped to the connector.

Link to the Mopar harness connector site.
http://connectors.dcctools.com/home.htm
Attachments
2018 PW Locker Harness Kit.png
2018 PW Locker Harness Kit.png (32.68 KiB) Viewed 653 times
