Skid Plates?

If it's about Power Wagons, all generations, this is where it'll go. This is the original PWR Forum Power Wagon Technical Discussion Section. And this includes everything that doesn’t fit in any one of the other categories related to the truck goes here!
User avatar
Bill2014
1000_Posts
1000_Posts
Posts: 1563
Joined: Fri May 09, 2014 9:03 pm
Model Year: 2014
Location: Northern NY

Re: Skid Plates?

Post by Bill2014 » Thu Feb 23, 2017 4:07 pm

MikeKey wrote:
Full tank of gas, two adults, two kids, some gear and Toyo 35's. 8360lbs. Pretty damn close to GVWR. :popcorn:


I have a Laramie too. This is why I scoff at "it needs a diesel" comments, the truck doesn't need to be any heavier.
Which is why my first mod was:



Sent from my iPhone using Tapatalk
2014 Power Wagon Laramie
Titan V5 2.5" Receiver Pintle Hook
Warn wireless winch controller
.188" DOM White Knuckle Rock Sliders
Locker Bypass & Nanny Kill Switch

Moab 2006

User avatar
olyelr
2000_Posts
2000_Posts
Posts: 3657
Joined: Sun Dec 07, 2014 9:00 pm
Model Year: 2016
Location: Kewadin, MI

Re: Skid Plates?

Post by olyelr » Thu Feb 23, 2017 7:40 pm

Ha, I suppose if you got hassled about weight periodically that would be a worthwhile upgrade. Where did you get that? It looks factory!
2016 Ram Power Wagon Laramie - Granite Crystal Metallic - Ramboxes - 35” AT3W - TazerRAM

:patriot:

User avatar
vanished
500_Posts
500_Posts
Posts: 895
Joined: Sat May 26, 2012 2:39 pm

Re: Skid Plates?

Post by vanished » Thu Feb 23, 2017 7:42 pm

Do tell... how did you get 10k?


Sent from my iPhone using Tapatalk

User avatar
OffroadTreks
Moderator
Moderator
Posts: 2434
Joined: Fri Mar 25, 2016 11:23 am
Model Year: 2015
Location: USA
Contact:

Re: Skid Plates?

Post by OffroadTreks » Thu Feb 23, 2017 8:31 pm

If you just want to weight your truck, drive up onto the scales. There are three sections. Get your front axle on the first scale and back on the second. There is usually a button; it's high in the air for big rigs, so I usually have wife stay in the truck, Stand on my tire and press button.

Then they ask, first weighing or re-weight and for a truck number. I just make up a number every time, doesn't matter, it's for commercial trucks. They weight, you go inside and pay and get your ticket. Super easy.

Depending on the station, it's $3-5 for the first weighing and $1 after. I have been to one place that charged $7 in CA for first weighing.

When I do the truck and Airstream, it's usually to figure out tongue weight, and if my WD is setup correctly. First pass naturally tells me the trucks axle weights.

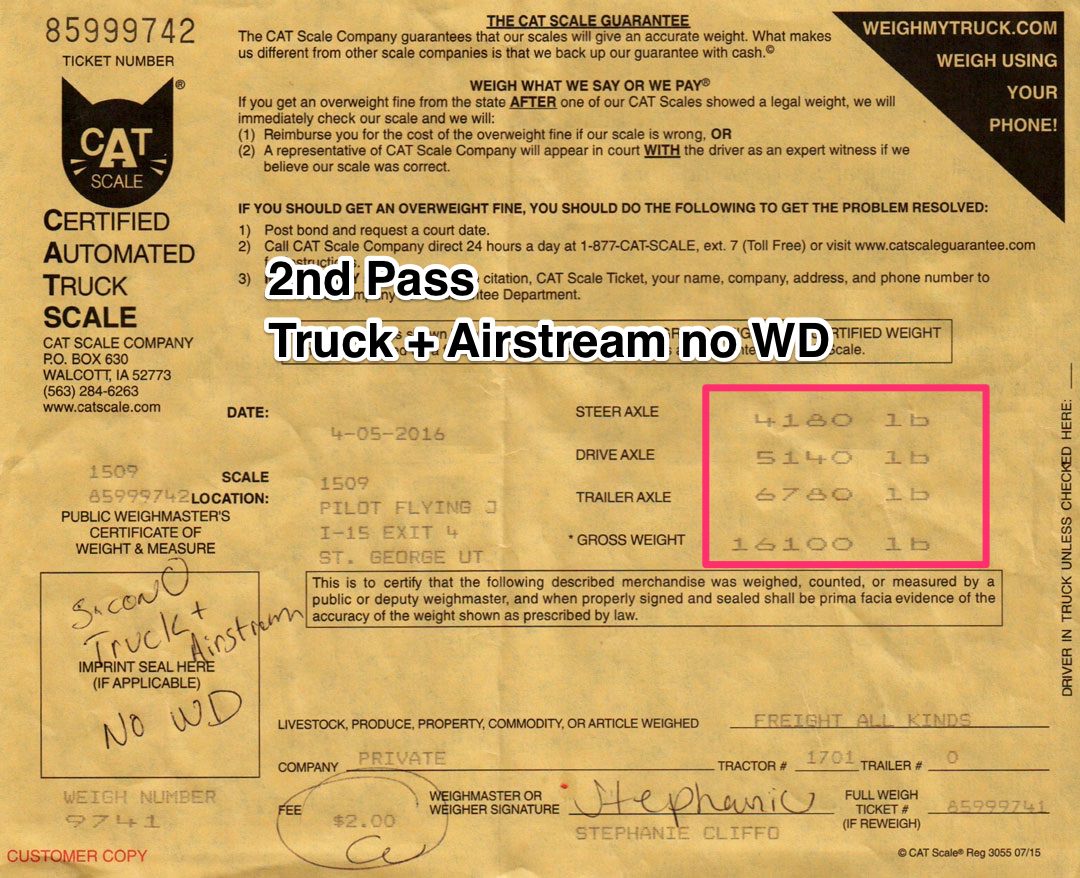

The second pass is done with the truck between first two sections of the scale, and trailer on the back section, with NO weight distribution, applied. This shows me my tongue weight. (1st pass axles - 2nd pass axles)

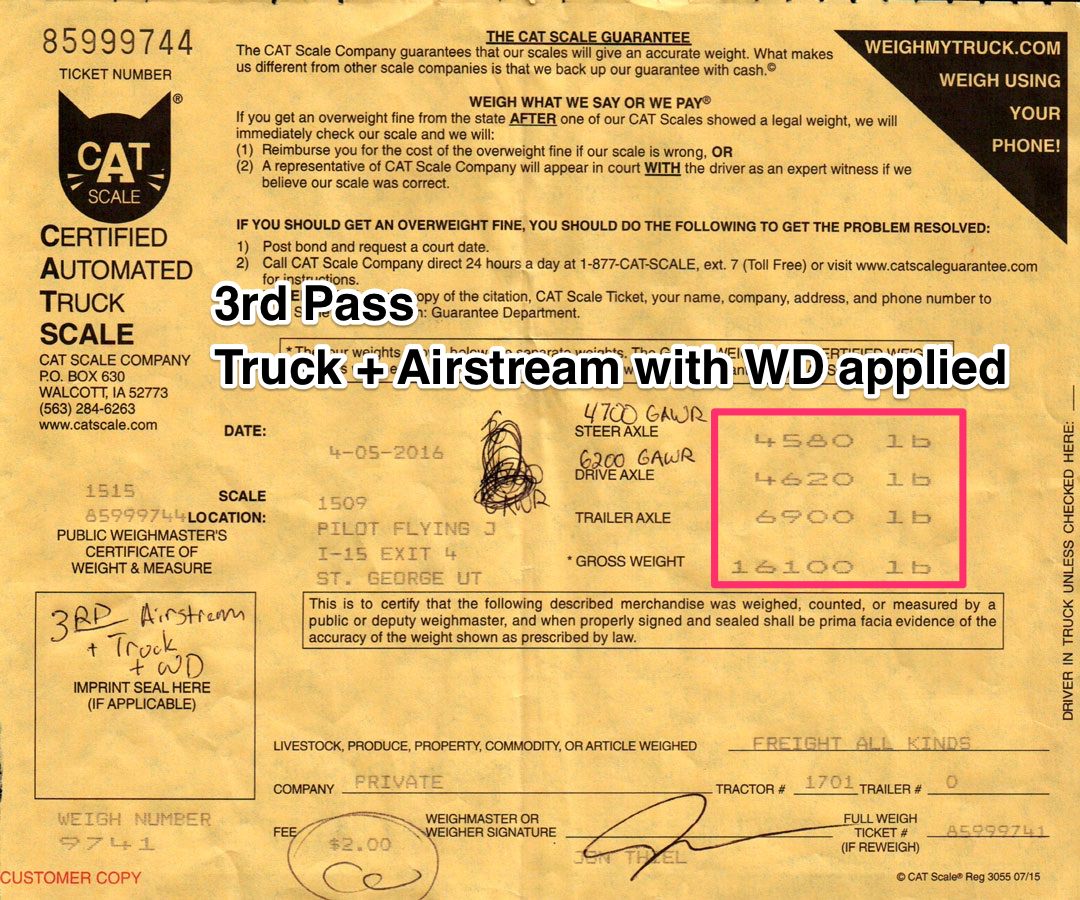

The third pass is with WD applied. And should show that I am distributing the weight evenly. I want the front axle weight to be close to what it was when first weighted just the truck. You can see here how the weights shift. And then you can adjust your WD from there.
:cheers:
2015 Power Wagon Laramie - "ROCKLANDER"
-------
[Build Thread] [Instagram] [Youtube]
------
Full-Size Off-Road Events & Overland Adventures

User avatar
DamageWagon
Vendor
Vendor
Posts: 2303
Joined: Tue Oct 11, 2016 1:21 am
Model Year: 2011
Location: Portland, OR
Contact:

Re: Skid Plates?

Post by DamageWagon » Thu Feb 23, 2017 8:46 pm

Mike, thanks for the info! I'm going to get the truck weighed before and after the camper so we know what it came out to.

Bill, why didn't you go 9900? You're in commercial weight now


Sent from my safe space

User avatar
Bill2014
1000_Posts
1000_Posts
Posts: 1563
Joined: Fri May 09, 2014 9:03 pm
Model Year: 2014
Location: Northern NY

Re: Skid Plates?

Post by Bill2014 » Thu Feb 23, 2017 9:26 pm

DamageWagon wrote:Mike, thanks for the info! I'm going to get the truck weighed before and after the camper so we know what it came out to.

Bill, why didn't you go 9900? You're in commercial weight now


Sent from my safe space
In NY most all pickups have commercial plates. And commercial plates are cheaper here.
2014 Power Wagon Laramie
Titan V5 2.5" Receiver Pintle Hook
Warn wireless winch controller
.188" DOM White Knuckle Rock Sliders
Locker Bypass & Nanny Kill Switch

Moab 2006

User avatar
RAM4ROKS
500_Posts
500_Posts
Posts: 975
Joined: Wed Jan 16, 2013 5:48 pm

Re: Skid Plates?

Post by RAM4ROKS » Thu Feb 23, 2017 10:10 pm

I would recommend beefing u the leading edge of the gas tank skidplate, mine has bent up and made a small scrape/crease on my gas tank. Oh, and yeah, the stock skid tubes on mine also are quite wave-esque. I have a bunch of 1/4" steel plate that will eventually become added skidplates for my Wagon!

There are three reasons I would not run aluminum skidplates:
1) as mentioned, even when you step up thickness, their strength can still be an issue
2) not as easy to repair- if you crunch a steel skid bad enough to make it contact something it shouldn't, you can just take a BFH and beat it back out a bit. With aluminum, in order to shape it (without possibly tearing it), you will need to anneal it to soften it then, reheat it to get its rigidity back.
3) Aluminum does not slide well. Steel will slide over rocks, Aluminum grabs, that's why most rockcrawlers that run aluminum skids run a second layer, made of UHMW plastic, to make a surface that will slider more easily.
