4th gen winch on a 3rd gen truck?

If it's about Power Wagons, all generations, this is where it'll go. This is the original PWR Forum Power Wagon Technical Discussion Section. And this includes everything that doesn’t fit in any one of the other categories related to the truck goes here!
Post Reply
JMOS4
Posts: 29
Joined: Fri Oct 16, 2015 3:06 pm
Model Year: 2007

4th gen winch on a 3rd gen truck?

Post by JMOS4 » Sat Apr 23, 2016 9:32 pm

Hi,

I just picked up a winch and mount from a 4wheel drive shop that was never installed on a truck, once I got it home I realized it was a 4th gen.

So has anyone else done this, the mount looks like it will mount up but the clutch lever looks like it will hit the bumper I am thinking I might be able to reclock the lever but think it will end up coming straight up near the AC condensor

Any ideas or suggestions greatly appreciated

Regards,
Jim
2007 Ram ST 2500 5.7 Hemi 6 speed, Dynatrac Hubs/balljoints, 4th gen winch
1992 Dodge Power Ram

User avatar
Sumbeach84
50_Posts
50_Posts
Posts: 81
Joined: Mon Apr 11, 2016 6:12 pm
Model Year: 2009
Location: Michigan

Re: 4th gen winch on a 3rd gen truck?

Post by Sumbeach84 » Sun Apr 24, 2016 12:15 am

I can't help in this topic right now but I can relate I'm trying to do the same thing and you sound awfully familiar to my situation? Are you in Michigan and just bought one of the winches from diversifed?

JMOS4
Posts: 29
Joined: Fri Oct 16, 2015 3:06 pm
Model Year: 2007

Re: 4th gen winch on a 3rd gen truck?

Post by JMOS4 » Sun Apr 24, 2016 10:59 am

Hi,

Yeah in Michigan, I didn't realize there was 2 different type, price was too good to pass up so a little McGyvering might be worth it even if I have to get a different lever.

Regards,
Jim
2007 Ram ST 2500 5.7 Hemi 6 speed, Dynatrac Hubs/balljoints, 4th gen winch
1992 Dodge Power Ram

User avatar
Sumbeach84
50_Posts
50_Posts
Posts: 81
Joined: Mon Apr 11, 2016 6:12 pm
Model Year: 2009
Location: Michigan

Re: 4th gen winch on a 3rd gen truck?

Post by Sumbeach84 » Sun Apr 24, 2016 12:48 pm

Yes from what I read the mount is the same or close enough to work but the solenoid pack and lever are on opposites sides so modifying the lever and they will work

JMOS4
Posts: 29
Joined: Fri Oct 16, 2015 3:06 pm
Model Year: 2007

Re: 4th gen winch on a 3rd gen truck?

Post by JMOS4 » Sun Apr 24, 2016 4:08 pm

Hi all,

Update:

Fits with no modifications, you do need to remove the bumper and nicest thing the clutch lever and controller plug in are accessible from the bumper so you don't have to open the hood

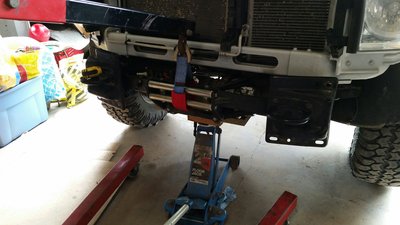

Also when you go to put it in you have to raise the winch and mount higher than the bumper brackets and lower it in on a 30-45 degree angle I used a cherry picker and a floor jack

Regards,
Jim
Jim
2007 Ram ST 2500 5.7 Hemi 6 speed, Dynatrac Hubs/balljoints, 4th gen winch
1992 Dodge Power Ram

User avatar
Sumbeach84
50_Posts
50_Posts
Posts: 81
Joined: Mon Apr 11, 2016 6:12 pm
Model Year: 2009
Location: Michigan

Re: 4th gen winch on a 3rd gen truck?

Post by Sumbeach84 » Sun Apr 24, 2016 9:38 pm

Anys pics of it installed?

JMOS4
Posts: 29
Joined: Fri Oct 16, 2015 3:06 pm
Model Year: 2007

Re: 4th gen winch on a 3rd gen truck?

Post by JMOS4 » Mon Apr 25, 2016 5:52 am

Hi,

Finally got the pictures resized so I could upload

Regards,
Attachments
2007 4th gen winch 1.jpg
2007 4th gen winch 2.jpg
2007 4th gen winch 3.jpg
2007 4th gen winch4.jpg
Jim
2007 Ram ST 2500 5.7 Hemi 6 speed, Dynatrac Hubs/balljoints, 4th gen winch
1992 Dodge Power Ram

User avatar
RamGentry
250_Posts
250_Posts
Posts: 296
Joined: Sun Oct 18, 2015 5:38 pm
Model Year: 2010

Re: 4th gen winch on a 3rd gen truck?

Post by RamGentry » Mon Apr 25, 2016 6:41 am

Nice! Looks right at home
If I start listing Mods I would have to change the list daily
My build thread http://forum.powerwagonregistry.org/vie ... =13&t=3593

User avatar
olyelr
2000_Posts
2000_Posts
Posts: 3657
Joined: Sun Dec 07, 2014 9:00 pm
Model Year: 2016
Location: Kewadin, MI

Re: 4th gen winch on a 3rd gen truck?

Post by olyelr » Mon Apr 25, 2016 7:15 am

Yeah, wow! I cant believe the frame and bumper hole on the 3rg gens are so close to the 4th gens. Glad it worked out for ya!
2016 Ram Power Wagon Laramie - Granite Crystal Metallic - Ramboxes - 35” AT3W - TazerRAM

:patriot:

User avatar
Sumbeach84
50_Posts
50_Posts
Posts: 81
Joined: Mon Apr 11, 2016 6:12 pm
Model Year: 2009
Location: Michigan

Re: 4th gen winch on a 3rd gen truck?

Post by Sumbeach84 » Mon Apr 25, 2016 9:41 am

Looks badass!

JMOS4
Posts: 29
Joined: Fri Oct 16, 2015 3:06 pm
Model Year: 2007

Re: 4th gen winch on a 3rd gen truck?

Post by JMOS4 » Tue Apr 26, 2016 12:58 pm

Hi all,

Thanks for the compliments, it a poor man's Power Wagon, one part at a time, as its a ST model, I mainly got it because it was a stick, and low mileage.

Yeah the winch fits nicely, not sure which version of winch is easier to use, but either will work in a 3rd gen

Regards,
Jim
2007 Ram ST 2500 5.7 Hemi 6 speed, Dynatrac Hubs/balljoints, 4th gen winch
1992 Dodge Power Ram
