Need third gen winch set up pics!

Graveltravels · Post by **Graveltravels** » Thu Mar 19, 2015 9:53 am

Hey guys, Big Blue and I need a couple pics of an installed 3rd gen winch, hood up, bumper on pics. My 4th gen seems to be clocked a bit different! Help us out!

Sent from my iPhone using Tapatalk

RustyPW · Post by **RustyPW** » Thu Mar 19, 2015 9:56 am

The 4G's are backwards from the 3G's.

Graveltravels · Post by **Graveltravels** » Thu Mar 19, 2015 10:05 am

Pictures!! We need pictures!!

we're trying to figure this out from 1800 miles apart!! PICTURES!!!!

Sent from my iPhone using Tapatalk

RustyPW · Post by **RustyPW** » Thu Mar 19, 2015 10:05 am

I got some pic's in here.

http://www.dodgetalk.com/forums/showthread.php?t=343330

Graveltravels · Post by **Graveltravels** » Thu Mar 19, 2015 10:17 am

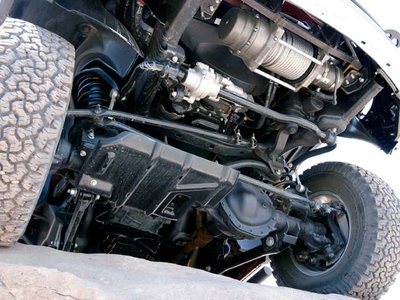

Thanks rusty, I don't have access to that! I'm not part of their forum, can't see it. Can anyone tell me if this looks right for the 3G?

Sent from my iPhone using Tapatalk

Graveltravels · Post by **Graveltravels** » Thu Mar 19, 2015 10:18 am

Sent from my iPhone using Tapatalk

Graveltravels · Post by **Graveltravels** » Thu Mar 19, 2015 12:19 pm

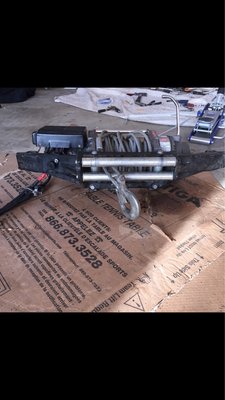

This is what I was able to pick of the web. Any 3G guys able to confirm this is your configuration? Short clutch lever?

Sent from my iPhone using Tapatalk

FirerescuePW · Post by **FirerescuePW** » Thu Mar 19, 2015 12:40 pm

Graveltravels wrote:
This is what I was able to pick of the web. Any 3G guys able to confirm this is your configuration? Short clutch lever?

Sent from my iPhone using Tapatalk

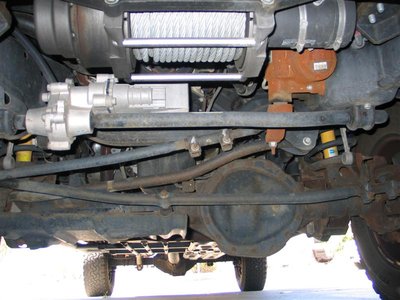

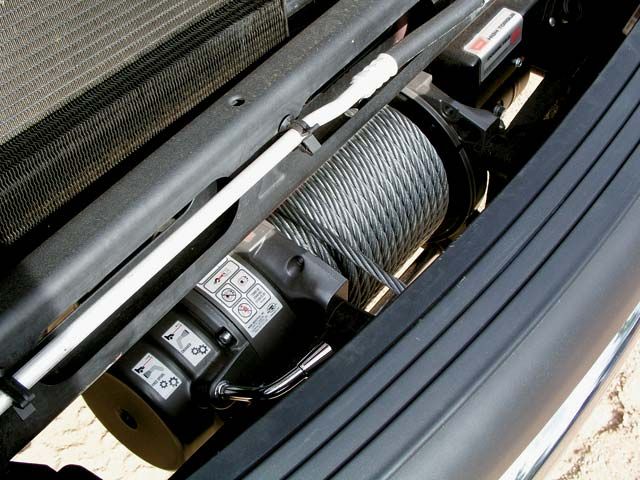

This photo is a 3G setup. The short lever on the passenger side, relay pack on the driver's side. And the grille raises with the hood, which affects access to the lever. Hence the long lever for the 4G.

Sent from my SPH-L720 using Tapatalk

Big Blue · Post by **Big Blue** » Thu Mar 19, 2015 3:30 pm

Ya that's what I thought. I looked at a 2012 at the dealer this morning and the winch I have is like that one. I started to install it yesterday but I didn't have any help (heavy SOB) and it wasn't fitting so I stopped until I could research a little more. It seemed like the mount/cradle would fit in the brackets between the frame but It didn't seem like there would be enough room for the control/relay box, and the lever was definitely not gonna work. Gravel Travels and I exchanged a couple of texts and he said the level could be moved (clocked) so I may need to do that. How does that level attach? Does it just screw off? Might make it easier to install if that were out of the way. May actually have to flip the winch in the mount depending on the space available. That will create another problem though. The hole in the mount for the remote connector will be wrong. Guess I should have made sure it was a 3rd gen winch before I bought it. Assumed they would be the same. Besides, no 4th gen guy would sell his winch right?

If anyone knows for sure if it will or won't work in my 2007 I'd appreciate the info. Thanks.

Big Blue · Post by **Big Blue** » Thu Mar 19, 2015 3:31 pm

Ya that's what I thought. I looked at a 2012 at the dealer this morning and the winch I have is like that one. I started to install it yesterday but I didn't have any help (heavy SOB) and it wasn't fitting so I stopped until I could research a little more. It seemed like the mount/cradle would fit in the brackets between the frame but It didn't seem like there would be enough room for the control/relay box, and the lever was definitely not gonna work. Gravel Travels and I exchanged a couple of texts and he said the level could be moved (clocked) so I may need to do that. How does that level attach? Does it just screw off? Might make it easier to install if that were out of the way. May actually have to flip the winch in the mount depending on the space available. That will create another problem though. The hole in the mount for the remote connector will be wrong. Guess I should have made sure it was a 3rd gen winch before I bought it. Assumed they would be the same. Besides, no 4th gen guy would sell his winch right?

If anyone knows for sure if it will or won't work in my 2007 I'd appreciate the info. Thanks.

Trouble Maker · Post by **Trouble Maker** » Thu Mar 19, 2015 8:47 pm

You don't have to mount the controller on the motor, I mounted mine higher out of the road spray and replaced the solenoids with a Runva Winch Contacter.

https://www.dropbox.com/sc/gnqrslreej2s ... VCEMaE9LAa

cruz · Post by **cruz** » Thu Mar 19, 2015 9:30 pm

Pics...

Graveltravels · Post by **Graveltravels** » Thu Mar 19, 2015 10:45 pm

Thanks guys!! You're awesome!! Big blue, you might have to see if that long clutch handle will hide behind the grill, or else buy a short lever. Either way, text me if you want, I can run you thru clocking it, if need be!

Sent from my iPhone using Tapatalk

Big Blue · Post by **Big Blue** » Fri Mar 20, 2015 7:57 am

Thanks GT. I'll give it another try and see exactly what needs done. I'll keep u posted. Thanks to everyone else also.

Big Blue · Post by **Big Blue** » Fri Mar 20, 2015 11:04 am

Trouble Maker wrote:You don't have to mount the controller on the motor, I mounted mine higher out of the road spray and replaced the solenoids with a Runva Winch Contacter.

https://www.dropbox.com/sc/gnqrslreej2s ... VCEMaE9LAa

Do you have a part or model number for the Runva? Just curious about it. Thanks.

Trouble Maker · Post by **Trouble Maker** » Fri Mar 20, 2015 12:52 pm

Big Blue wrote:
Trouble Maker wrote:You don't have to mount the controller on the motor, I mounted mine higher out of the road spray and replaced the solenoids with a Runva Winch Contacter.

https://www.dropbox.com/sc/gnqrslreej2s ... VCEMaE9LAa
Do you have a part or model number for the Runva? Just curious about it. Thanks.

http://www.canadawinch.com/canada/R500.htm

Big Blue · Post by **Big Blue** » Fri Mar 20, 2015 5:02 pm

Thanks.

Mule · Post by **Mule** » Sat Mar 21, 2015 1:18 am

http://mule.smugmug.com/Equipment/12k-winch/i-pd2dNCx

Big Blue · Post by **Big Blue** » Mon Mar 30, 2015 9:01 pm

Update (and a question) on installing a 4th gen winch on my 2007. I took the winch off of the mount and removed the cable from the winch to make it light enough to work with. The winch mount fit perfectly into the existing frame brackets. Not sure if its the same as the 3rd gen mount but it fits as if it were made for a 3rd gen. Next I tried lifting the winch in place to attach it to the mount but couldn't do it because the clutch lever interfered. So...I re-clocked the lever and was able to to get the winch to mount! Awesome right? I thought so until I tried to engage the clutch and it hit the mount. Couldn't engage it. Damn! At this point I think I have a few options. One would be to re-clock the lever again to below the the mount. The problem with that, I think, is I would have to engage the clutch from under the truck. Not only a PITA but could be impossible if the mud gets deep enough. Another option would be to alter the lever. Not exactly sure how I would do it but may have to shorten it somehow. Not a fan of altering things if I don't have to. A third option would be to reposition the clutch lever if possible. I don't mean re-clocking it. I mean removing the lever and spinning it 180 degrees. Which leads me to my question. Can the lever be repositioned? Does anyone have any experience with or knowledge of how it attaches inside the case? I THINK on a third gen winch there's a set screw outside the case. Not so on a 4th gen. Guess I could call Warn and see if they would help. Thanks!

JMOS4 · Post by **JMOS4** » Sat Apr 23, 2016 2:23 pm

Hi,

I know this is a older post, but I'm undertaking the same thing newer winch in a 07, and wanted to know what you endedup doing to get it to work

Regards,
