2008 Winch repair/rewire help

Post by UncleYarbie » Mon Feb 13, 2023 2:33 pm

OK,

So I pulled my winch the other day so that I could go about removing the LVI and TPS. When I purchased my truck the winch never functioned as the previous owner said the LVI was out. My main cables from the battery were already removed and zip tied out of the way.

First I know where the ground goes but which solenoid does the battery +cable go to?

Second I understand the one cable gets wired out of the LVI circuit. Is it the red wire that's going to the controller that's supposed to go directly to the ground?

Third- I pulled the motor out and pulled the wires off the TPS it should work with that completely unwired right? I just need to jumper the return? Or do I also need to bumper either side of the TPS? I would think if it's not being used it wouldn't need current through it right?

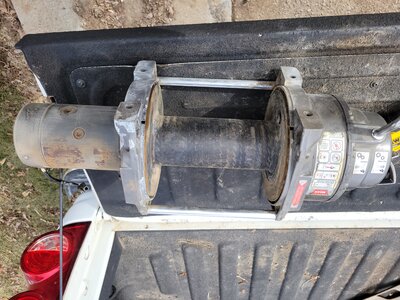

My case was severally corroded so I am cleaning and painting it along the way. Here's a few pictures of that I'm doing and the wires in question

This truck was originally from Marysville Washington, I purchased it from the 2nd owner in Colorado and brought it back with me to Idaho. The rest of the truck hardly has corrosion or rust but for some reason the winch got ugly

Jeff
Attachments
2008 PW QC G56

RustyPW
2000_Posts
2000_Posts
Posts: 5454
Joined: Thu May 24, 2012 4:23 pm
Model Year: 2008
Location: Brownsville Pa.

Re: 2008 Winch repair/rewire help

Post by RustyPW » Mon Feb 13, 2023 7:30 pm

Some where here on the forum is a complete diagram of the winch. Where? I don't know.
PWOC #53
2008 POWER WAGON RC

My build thread. http://forum.powerwagonregistry.org/vie ... =13&t=2826 :cash: :cash:

Moab '09, '10, '12, '14.
Rausch Creek - Summer '10, Spring-Fall '11, Spring '12, Summer '13, Summer '14, Summer '15, Summer '16, Summer '17, Summer '18, Summer '20, Summer '22,
AOAA Summer '19.

Russ
NRA - Benefactor, Golden Eagle. :lockedandloaded:


User avatar
Retired BLM Rig
1000_Posts
1000_Posts
Posts: 1132
Joined: Sun Jan 31, 2016 6:51 pm
Model Year: 2008
Location: State of Jefferson

Re: 2008 Winch repair/rewire help

Post by Retired BLM Rig » Tue Feb 14, 2023 12:09 pm

Based on this picture from page #29 of the manual, it looks like you're missing a bus bar between solenoid #1 & #3 and the positive battery cable is supposed to connect to the outer terminal of solenoid #3.

Screenshot 2023-02-14 at 9.03.53 AM.png

UncleYarbie
Posts: 15
Joined: Sat Sep 24, 2022 1:27 pm
Model Year: 2008

Re: 2008 Winch repair/rewire help

Post by UncleYarbie » Wed Feb 15, 2023 9:35 am

I have that bus bar, I was taking everything apart and cleaning the connections at the time. That's the info I needed though, I appreciate it.

Thank you
2008 PW QC G56

JRHPWRWAGON06
Posts: 35
Joined: Thu Nov 28, 2019 3:52 pm
Model Year: 2006

Re: 2008 Winch repair/rewire help

Post by JRHPWRWAGON06 » Mon May 08, 2023 10:50 pm

Retired BLM Rig wrote:
Mon Feb 13, 2023 9:57 pm
I have the 38 page factory diagnostic and repair manual supplement for the PW winch. This forum doesn't support the PDF file format, so I'll email it to you.

:patriot:
Will send you a PM for the PDF... :excited:
2006 White Power Wagon QuadCab
OPTIONS-
545RFE, NAV Sys. w/ 6-CD Sat. Radio, Light Group, Rear Sliding Window,
Heated Tow Mirrors, Leather-Wrapped Steering Wheel,
Steering Wheel Mounted Audio Controls, Power Adjustable pedals.
MODS-
Lifetime Sirius SAT Radio, 33X12.5R17 Firestone M/T2's on Original Power Wagon wheels,
Line-X bedliner, Mopar Rock Rails w/CARR side steps, Gibson Dual Exhaust,
Dynatrac manual locking hub conversion w/DynaLoc hubs.
Abel Locker+SmartBar Bypass, Deflecta-Shield 60" Low Profile Toolbox,
Mopar: Winch Accy Kit, Wheel well liners, Mudflaps, Engine block heater, spare tire winch lock, alarm system.

pnora
Posts: 6
Joined: Mon Mar 08, 2021 5:39 pm
Model Year: 2015

Re: 2008 Winch repair/rewire help

Post by pnora » Tue Nov 07, 2023 9:58 pm

Hate to Hijack. Would anyone have a copy of the winch wiring for a 2015.

Sierra1boy
Posts: 8
Joined: Tue Aug 10, 2021 12:12 am
Location: Reno

Re: 2008 Winch repair/rewire help

Post by Sierra1boy » Sat Dec 09, 2023 9:53 pm

Same question for a 2005, and also not trying to hijack. thank you

User avatar
Retired BLM Rig
1000_Posts
1000_Posts
Posts: 1132
Joined: Sun Jan 31, 2016 6:51 pm
Model Year: 2008
Location: State of Jefferson

Re: 2008 Winch repair/rewire help

Post by Retired BLM Rig » Sat Dec 09, 2023 10:42 pm

Sierra1boy wrote:
Sat Dec 09, 2023 9:53 pm
Same question for a 2005, and also not trying to hijack. thank you
This forum doesn't support the PDF file format. If you send me an email, I'll forward you the PDF factory service manual supplement for the Warn/PW winch. AbelComponents@yahoo.com
:patriot:

User avatar
SimonandSimonBeast
250_Posts
250_Posts
Posts: 416
Joined: Wed Nov 20, 2019 10:53 pm
Model Year: 2013
Location: Upper Salford, PA

Re: 2008 Winch repair/rewire help

Post by SimonandSimonBeast » Mon Feb 05, 2024 9:43 pm

Once you have the winch hooked to power, hook up the remote and power it one direction or another. If you hear strong clicking, your solenoids are most likely good. While powering in one direction take a mini-sledge to somewhat forcibly tap the motor housing to see if it frees up the motor to start operating.
