2014+ Suspension and Steering

Post by djgaston » Wed Feb 24, 2016 1:06 am

I haven't posted in a while, but wanted to update with some of the things we make for the new Power Wagon trucks. Not all of this is on the site yet but it's all available. The suspension kit has been on the site for over a year, some of the other stuff is relatively new.

Steering brace - fits all sway bars and torsion bars
http://dodgeoffroad.3dcartstores.com/Do ... p_152.html



Steering linkage - 2" OD .250" wall tie rod, 1.5" OD .250" wall drag link, 4140 HT chromoly hardware with 7/8" heims, totally bolt-in
http://dodgeoffroad.3dcartstores.com/Do ... p_166.html


Suspension kit - 2" lift or 3.5" lift height available on Power Wagons, Hemi-specific coils front and rear (not diesel coils like everyone else), includes shocks, bumpstops, front and rear adjustable track bars, front sway bar end links, and no drop brackets or spacers! Options for better shock packages and adjustable radius arms. Our 2014 diesel shown in this pic, will have post-worthy PW-specific pics soon.
http://dodgeoffroad.3dcartstores.com/DO ... p_183.html

Adjustable front and rear end links - 1.25" OD tube with hex adapters, 3/4" heims on both ends, the largest end links available anywhere. Available in custom lengths too. Picture is of standard end links, PW come without the bracket and are the correct length.
http://dodgeoffroad.3dcartstores.com/DO ... _p_74.html

Adjustable radius arms - part of our suspensions, also available separately. Adjust caster and axle position, better tire clearance than stock, and no loss of ground clearance like with drop brackets. Extremely heavy duty, they weigh 93 lbs each. Johnny Joints used for the adjustment. Bolt-in install.

Adjustable rear track bar - 1.5" OD x .40" wall DOM tube with 1" shank Johnny Joints at both ends, bent to clear rear diff cover. Much stronger than stock, and no need for drop brackets. Center your rear axle with any lift height. Bolt-in install.

In the works: Adjustable rear control arms, front long arms, adjustable front track bar by itself, and a 2014+ PW-specific category on the site so it's easier to find what is made for your truck. :idea: I do all of our website work myself so things don't get updated as often as I'd like, but we're beefing up our staff again and I will have more time to stay on top of that. We're the only suspension company that caters to Power Wagon trucks specifically, and we're the only one that actually has a Power Wagon. We're not flashy and we don't advertise at all, but you'll find that our products are built stronger than anybody else's and that comes from our background in rock crawling and trail riding. The go-fast desert scene is very cool, and there are a lot of rigs out West running our parts and full suspensions, but no company has the experience we do with building Ram rock crawlers. We have our own proving grounds on-site and anybody is more than welcome to come by and test out their rigs on our rock garden, hill climbs, RTI ramp, and woods trails - and depending on the weather, a 3' deep mud pit. Everything we make is built right here in Lakeview, Arkansas - we don't outsource anything. It's all cut, welded, coated, and shipped from the same location.

:patriot:
Danny Gaston, Dodge Off Road  -  Email sales@dodgeoffroad.com - Phone 855.9009.DOR


Suspension and Steering Products for Ram 4x4 trucks - 1st through 5th gen models. Specializing in Power Wagon trucks, 2005 through 2018. We build Power Wagon parts because we are Power Wagon owners!

2005 Power Wagon #469 - 6" DOR long arm suspension and rear 4 link, SAW 2.5" coilovers front and rear, 41.5" Pitbull Rockers on 17" Trailready beadlocks, Road Armor bumpers, DOR steering linkage and brace - much more
2014 Ram 2500 CTD - 3" DOR long arm suspension, King 2.5" remote resi shocks front and rear, DOR steering, DOR track bars, DOR rear arms, DOR torsion sway bar, 37" Toyo MT tires on 17" Method Wheels - the tow rig
2001 Ram 2500 V10 - 8" DOR coilover long arm suspension and rear 4 link, prepping for 2.5 ton Rockwells with ARB lockers with front and rear steering, 47" LTBs on Trailready Beadlocks - much more

User avatar
Will
2000_Posts
2000_Posts
Posts: 2496
Joined: Mon Jan 27, 2014 7:16 am
Model Year: 2010

Re: 2014+ Suspension and Steering

Post by Will » Wed Feb 24, 2016 6:52 am

:rockon:
2010 with 37" hooves, controlled by numerous Thuren parts and Thuren Custom King 2.5's
http://forum.powerwagonregistry.org/vie ... =13&t=2333

I only do what the majority of the 4 voices in my head tell me to. In most cases, I ignore two of them because one doesn't speak English, and I suspect the other is talking to someone else.

User avatar
adeluca73
2000_Posts
2000_Posts
Posts: 2108
Joined: Mon May 19, 2014 11:56 pm
Model Year: 2014
Location: The Pentagon, VA

Re: 2014+ Suspension and Steering

Post by adeluca73 » Thu Feb 25, 2016 12:17 am

Wow---don't even know where to start!! I think I'll start w/ the steering box brace first.
2014 Ram PW SLT: 1st year of the Best Gen
<Build Thread>

User avatar
djgaston
Vendor
Vendor
Posts: 251
Joined: Wed Aug 22, 2012 2:12 pm
Location: Arkansas
Contact:

Re: 2014+ Suspension and Steering

Post by djgaston » Thu Feb 25, 2016 1:29 pm

The braces are in stock and ready for a new home!
Danny Gaston, Dodge Off Road  -  Email sales@dodgeoffroad.com - Phone 855.9009.DOR


Suspension and Steering Products for Ram 4x4 trucks - 1st through 5th gen models. Specializing in Power Wagon trucks, 2005 through 2018. We build Power Wagon parts because we are Power Wagon owners!

2005 Power Wagon #469 - 6" DOR long arm suspension and rear 4 link, SAW 2.5" coilovers front and rear, 41.5" Pitbull Rockers on 17" Trailready beadlocks, Road Armor bumpers, DOR steering linkage and brace - much more
2014 Ram 2500 CTD - 3" DOR long arm suspension, King 2.5" remote resi shocks front and rear, DOR steering, DOR track bars, DOR rear arms, DOR torsion sway bar, 37" Toyo MT tires on 17" Method Wheels - the tow rig
2001 Ram 2500 V10 - 8" DOR coilover long arm suspension and rear 4 link, prepping for 2.5 ton Rockwells with ARB lockers with front and rear steering, 47" LTBs on Trailready Beadlocks - much more

User avatar
Reloaderguy
1000_Posts
1000_Posts
Posts: 1781
Joined: Tue Feb 09, 2016 8:06 am
Model Year: 2014
Location: Central Oregon

Re: 2014+ Suspension and Steering

Post by Reloaderguy » Sat Mar 05, 2016 3:42 pm

Would you post a picture of the radius arms?
Best Year Power Wagon

15wbpw
50_Posts
50_Posts
Posts: 67
Joined: Tue Feb 10, 2015 2:06 pm
Model Year: 2014

Re: 2014+ Suspension and Steering

Post by 15wbpw » Sat Apr 02, 2016 6:47 pm

So these arms you have will work with the articulink thing that's on the power wagons? I'd love to get more info on a 3.5in kit. You can pm me if you need

15wbpw
50_Posts
50_Posts
Posts: 67
Joined: Tue Feb 10, 2015 2:06 pm
Model Year: 2014

Re: 2014+ Suspension and Steering

Post by 15wbpw » Wed Apr 13, 2016 8:18 pm

15wbpw wrote:So these arms you have will work with the articulink thing that's on the power wagons? I'd love to get more info on a 3.5in kit. You can pm me if you need
*cricket chirp*

User avatar
Reloaderguy
1000_Posts
1000_Posts
Posts: 1781
Joined: Tue Feb 09, 2016 8:06 am
Model Year: 2014
Location: Central Oregon

Re: 2014+ Suspension and Steering

Post by Reloaderguy » Sun Apr 24, 2016 7:26 pm

I went to order a steering box brace today. $37 shipping to Oregon is too rich for my blood.
Best Year Power Wagon

TruckBoatTruck
Posts: 49
Joined: Tue Sep 08, 2015 3:27 pm
Model Year: 2014

Re: 2014+ Suspension and Steering

Post by TruckBoatTruck » Tue Apr 26, 2016 8:58 am

Quick Question, with the 3.5'' lift kit does that add 3.5'' of lift above the PW stock hight or above the diesel stock height?

User avatar
Mr.Smith
1000_Posts
1000_Posts
Posts: 1124
Joined: Wed Sep 04, 2013 6:36 pm
Model Year: 2009
Location: Fort Collins, CO.

Re: 2014+ Suspension and Steering

Post by Mr.Smith » Wed Apr 27, 2016 11:50 pm

Reloaderguy wrote:I went to order a steering box brace today. $37 shipping to Oregon is too rich for my blood.
As far as I know (research wise) this is the best steering box brace. Perhaps you should call him, maybe something better can be worked out...

User avatar
Reloaderguy
1000_Posts
1000_Posts
Posts: 1781
Joined: Tue Feb 09, 2016 8:06 am
Model Year: 2014
Location: Central Oregon

Re: 2014+ Suspension and Steering

Post by Reloaderguy » Sun May 01, 2016 2:37 pm

All of the install guide PDF links are broken. http://dodgeoffroad.3dcartstores.com/In ... _45-1.html
Best Year Power Wagon

User avatar
djgaston
Vendor
Vendor
Posts: 251
Joined: Wed Aug 22, 2012 2:12 pm
Location: Arkansas
Contact:

Re: 2014+ Suspension and Steering

Post by djgaston » Thu May 19, 2016 2:20 am

Wow, I haven't logged in here in a while, sorry I missed the posts! Email or give us a call anytime for a faster response. 855-900-9367 Monday-Friday 10 AM to 5:30 PM CST

I'm trying to phase out the radius arms, and just sell the long arms. The radius arms are badass, definitely the beefiest parts we've ever built, but they take way too long to build and there really isn't anything we can do to get the build time down. I have to pull my best guy off of everything for a full day to build one set. It was fine over the winter but now we're going full steam 7 days a week with no down time to work them in. The long arms are something we can build in mass quantities and it will be a better product. I'm finishing up the brackets, they key right into the frame and then you just drill a few holes. Super easy install and they work better, have better clearance, and the price will be much better. In case I forget to come back on here, just check out the site in the next couple of weeks. We have a few sets going out next week and I'll install them on my truck middle of next week. If anybody really wants a set of radius arms, they'll be available for a little while, but truthfully the long arms will be a better option in all aspects unless you just don't want to drill the frame. With the long arms, the Articulink will be gone and you'll have a legit 4 link setup.

Shipping is what it is, we can try to quote it out to a commercial address and see if it's less. There are USPS options as well. We don't mark the shipping up at all, it's quoted on the site through UPS.com and USPS.com in real time. The brace is 20 lbs of steel, in an 18x12x6 box, and we're in Arkansas. Shipping is just too expensive in my opinion, UPS just bumped up their oversize rates again so all of our steering kits and long arms have an extra $10 charge per box. It sucks. They go up 5% every December, across the board. If there is a cheaper option, we'll do it, but UPS has been the best. Order more stuff and the shipping won't seem as high. :D

The 3.5" kit is a 3.5" lift over the factory Power Wagon height. It's a 3.5" lift up front, 2" lift in the back, all new Fox shocks, long arms, end links, front and rear track bars, a track bar drop bracket and drop pitman arm to keep the angles flatter. We still recommend our steering at that height because the heims handle the angle a lot better than factory TREs do. Stock steering will work but you'll probably eat up the drag link TREs every year.

Reloaderguy, send us an email and I can reply back with the install instructions if you want to read them. I keep having problems with PDF files on the site and broken links, thanks for the reminder. I need to research that and see what the deal is. The install is really easy.

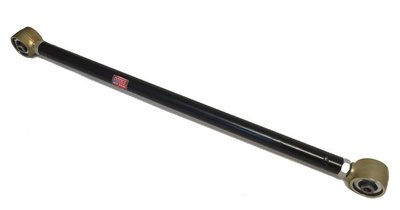

I've been busier than a one-legged man in an ass kicking contest, but I did manage to get the rear track bar added to the site recently: http://dodgeoffroad.3dcartstores.com/Do ... p_193.html
Rear TB

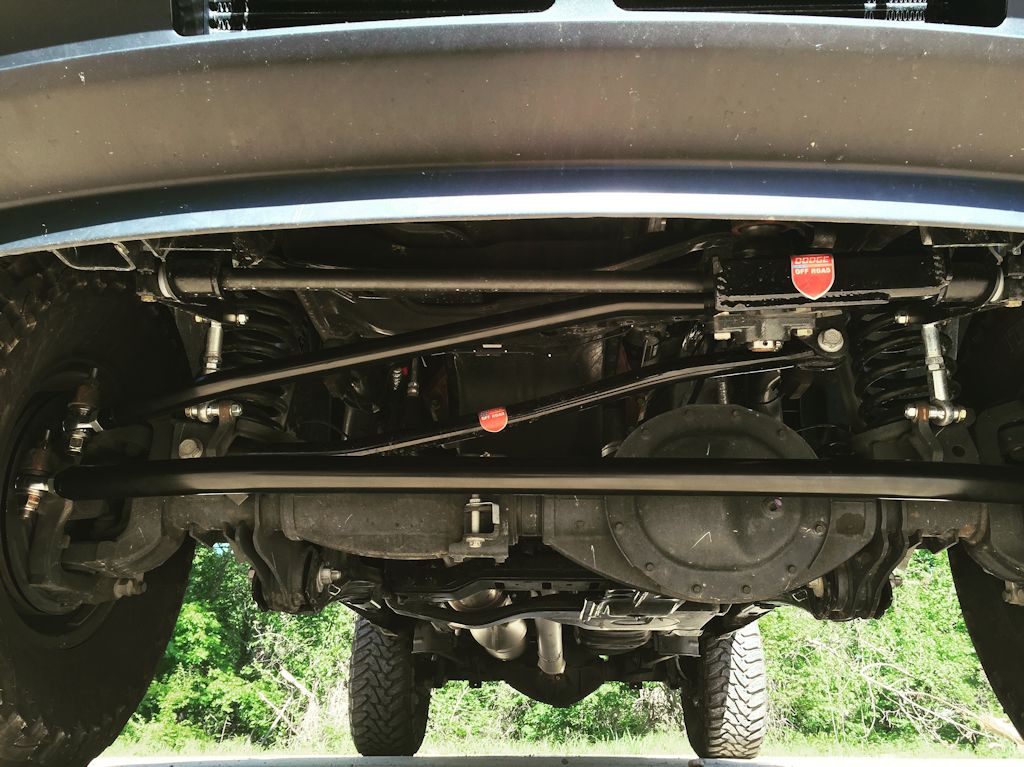

And new pics of the 5th gen linkage:
5G Steering



We still have a lot more to add and new products on the table, we're just running around like mad men trying to keep up with everything. We build stuff faster than I can get photos and get it all on the internet, so call or email anytime if there is something you are interested in for your truck.
Danny Gaston, Dodge Off Road  -  Email sales@dodgeoffroad.com - Phone 855.9009.DOR


Suspension and Steering Products for Ram 4x4 trucks - 1st through 5th gen models. Specializing in Power Wagon trucks, 2005 through 2018. We build Power Wagon parts because we are Power Wagon owners!

2005 Power Wagon #469 - 6" DOR long arm suspension and rear 4 link, SAW 2.5" coilovers front and rear, 41.5" Pitbull Rockers on 17" Trailready beadlocks, Road Armor bumpers, DOR steering linkage and brace - much more
2014 Ram 2500 CTD - 3" DOR long arm suspension, King 2.5" remote resi shocks front and rear, DOR steering, DOR track bars, DOR rear arms, DOR torsion sway bar, 37" Toyo MT tires on 17" Method Wheels - the tow rig
2001 Ram 2500 V10 - 8" DOR coilover long arm suspension and rear 4 link, prepping for 2.5 ton Rockwells with ARB lockers with front and rear steering, 47" LTBs on Trailready Beadlocks - much more

User avatar
Reloaderguy
1000_Posts
1000_Posts
Posts: 1781
Joined: Tue Feb 09, 2016 8:06 am
Model Year: 2014
Location: Central Oregon

Re: 2014+ Suspension and Steering

Post by Reloaderguy » Sun May 29, 2016 7:44 pm

Please post pictures of the radius arms and long arms. No matter how good the product is, I won't buy it unless I can plainly see it. An installation video would be great too.
Best Year Power Wagon

User avatar
BoldAdventure
Moderator
Moderator
Posts: 1842
Joined: Fri Mar 25, 2016 11:23 am
Model Year: 2014
Location: Nomadic
Contact:

Re: 2014+ Suspension and Steering

Post by BoldAdventure » Sun May 29, 2016 8:35 pm

Ditto what he said. I like nice big high res photos so I can understand the product and see what I'm getting.
