Trailer Hitch Ball Mount Storage Idea

If it's about Power Wagons, all generations, this is where it'll go. This is the original PWR Forum Power Wagon Technical Discussion Section. And this includes everything that doesn’t fit in any one of the other categories related to the truck goes here!
Post Reply
User avatar
Retired BLM Rig
500_Posts
500_Posts
Posts: 651
Joined: Sun Jan 31, 2016 6:51 pm
Model Year: 2008
Location: San Clemente, Ca.

Trailer Hitch Ball Mount Storage Idea

Post by Retired BLM Rig » Mon May 30, 2016 2:58 am

I don't know if this will work on the newer trucks but it worked on my 08.

I like to carry my trailer hitch ball mount with me but I don't like bashing my shin on it every time I walk around the back of my truck. I also don't want it floating around in the cab or bed of my truck and it takes up too much valuable toolbox space that could be used for other gear.

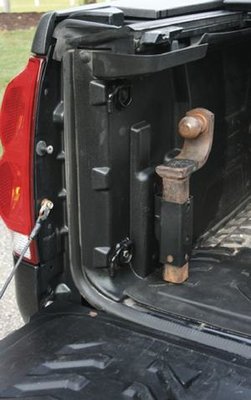

I saw this picture for a "Stor-A-Hitch" on the internet and it got me thinking.
Store A Hitch 1_lg.jpg
I started thinking about the possibility of storing it under the truck somewhere so it would be completely out of the way but easy to access.
After spending way too much time thinking and looking, this is what I came up with.

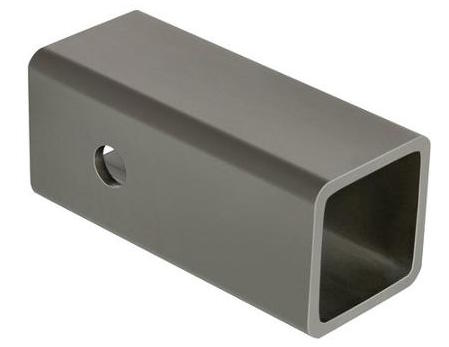

My truck has a 2" receiver, so I went to Walmart and bought a Reese 2-1/2" to 2" reducer sleeve (#7028711) for $11.48
Reese Adapter.jpg
Reese Adapter.jpg (10.89 KiB) Viewed 2257 times

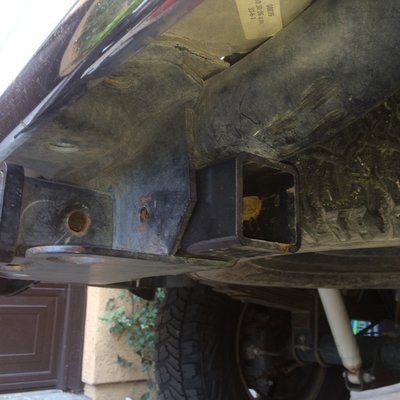

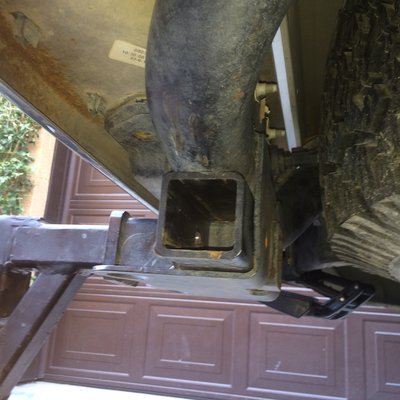

Then I installed it here on my factory receiver.
I had to beat it into place with a dead blow hammer. That sucker is in there so tight, it ain't never coming out without a blue tip wrench. It's not loose and it doesn't rattle.

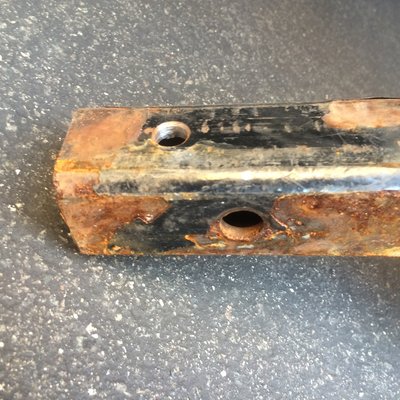

Next I had to drill thru the entire assembly including my ball mount so everything would line up. I decided to drill it the same size as the hole that was already in the receiver, but I probably could have gone with a smaller 1/4" hole.
I purchased a Master Lock keyed alike trailer pin set and I put a piece of clear plastic hose over the small pin to stop any rattling and compensate for the difference in size.
Master Lock.jpg

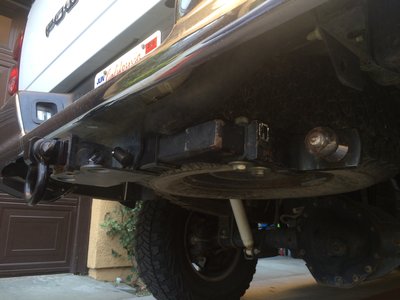

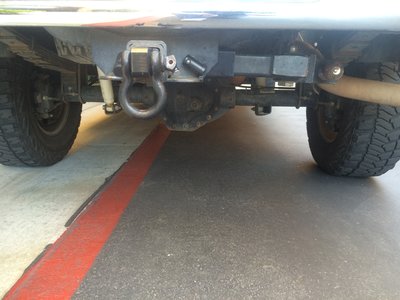

It droops a tiny bit, but it's out of my way and easy to get to. The average person won't even notice that it's under there and I don't think it will hinder my departure angle.
I don't think this has weakened my hitch system any because there was already a hole in the factory receiver and the hole I drilled in the ball mount is behind the standard pin hole and on a different plane. So far I'm happy with it!

User avatar
olyelr
2000_Posts
2000_Posts
Posts: 3267
Joined: Sun Dec 07, 2014 9:00 pm
Model Year: 2016
Location: Kewadin, MI

Re: Trailer Hitch Ball Mount Storage Idea

Post by olyelr » Mon May 30, 2016 11:55 pm

Now thats thinkin lincoln, good job!
2016 Ram Power Wagon Laramie - Granite Crystal Metallic - Ramboxes - 35” AT3W - TazerRAM

:patriot:

RustyPW
2000_Posts
2000_Posts
Posts: 4252
Joined: Thu May 24, 2012 4:23 pm
Model Year: 2008
Location: Brownsville Pa.

Re: Trailer Hitch Ball Mount Storage Idea

Post by RustyPW » Tue May 31, 2016 12:06 am

Nice idea. :rockon:
PWOC #53
2008 POWER WAGON RC
Mods to the PW; Nerffed Mopar RockRails, Wheel Well Liners, Bushwacker Pocket Fender Flairs, Garvmin dezl 560LMT GPS, Power Wagon Winch Kit, Line X Ultra Bed Liner, PIAA Headlight Bulbs, PIAA 580 Driving Lights (135 watt), PIAA 520 Fog Lights (135 watt), PIAA 520 ATP Off-Road Lights (135 watt), Locker Bypass, Modifed Rockcrusher Diff Covers, Mopar Utility Bed Rails and Tool Box, Warn Winch Wireless Remote Control, "el-cheapo" Inclinometer, Airaid CAI, Winch TPS Bypass, 35" Toyo's, Mopar Spare Tire Lock, 'T' Steering Linkage, Modifed PSC Steering Brace, P3 Brake Controller, Modifed Fusion "mall crawler" rear bumper , PIAA 1500 Back-Up Lights, 1Ton HEMI Tranny Cooler, Leer 100XR Bed Cap, Factory Tow Mirrors, CenterLine Rims 17x9-5.25 BS, Mag-Hytec Tranny Pan, AutoMeter Gauges, PSC Extreme Hydro Assist Steering, Carli G2 Track Bar, Carli Ball-Joints, Dynatrac FreeSpin Hubs, Snorkel, RCV Axles, EBC Pads & Rotors, Aluminess Front Bumper, 14,000 lb Pul-Pal, 60" Extreme Hi-lift Jack, and more riggin' equipment, Carli Long Travel Air Bags, Bilstein 7100 Shocks - Carli Valving, Carli Control Arms, Thuren 3" SoftRide Springs, Thuren Rear Shackles, MagnaFlow Muffler, Crown Stainless Brake Lines, MORE STUFF COMIN'.

Moab '10, '12, '14.
Rausch Creek Spring-Fall '11, Spring '12, Summer '13, Summer '14, Summer '15, Summer '16, Summer '17, Summer '18,
Russ NRA Benefactor Member

TwinStick
2000_Posts
2000_Posts
Posts: 4148
Joined: Mon May 28, 2012 7:58 pm
Model Year: 2008

Re: Trailer Hitch Ball Mount Storage Idea

Post by TwinStick » Tue May 31, 2016 12:28 pm

RustyPW wrote:Nice idea. :rockon:

^^^^^^^What he said !!!^^^^^^^^^^^^^^^^^
In WNY State. 2008 Red QC PW G56. No lift yet, stock size tires. It pulls an 18' 2016 Starcraft AR One Extreme, 3500 lbs.
Load Pro 35 helper springs. 2015 A.R.E. MX Series custom cap. PCP front diff cover protector. Mag-Hytec 6 qt rear diff cover. K&N replacement air filter only. Dual grounded throttle body. Winch TPC bypass. Fab Four rear bumper. DURA BAK lined rocker protection. And a bunch of new front end stuff.

G-56 Gear ratios: 1st) 6.29:1 2nd) 3.48:1 3rd) 2.10:1 4th) 1.38:1 5th) 1.0:1 6th) 0.79:1 Rev 6.29:1 --- = 78.01613:1 Crawl Ratio
-------------------------5.94:1--------3.28:1-------1.98:1-------1.31:1-------1.0:1-------0.74:1-----5.42:1 ---- = 73.675:1
545RFE----------------3.0:1---------1.67:1--------1.0:1--------0.75:1-------0.67:1------------------3.0:1 -------=37.21:1

2013+ 32.47 crawl ratio...............Can you see the trend ??????????????

WarWagon
Posts: 2
Joined: Tue May 31, 2016 9:06 pm
Location: Bruning, Nebraska

Re: Trailer Hitch Ball Mount Storage Idea

Post by WarWagon » Tue May 31, 2016 9:11 pm

Thats a cool idea, since my trucks have drop hitches i just always turned them upside down and stuck them in the back with a new hole.
If you flip the bottle outta the cupholder its gonna be a good story!

User avatar
Will
2000_Posts
2000_Posts
Posts: 2521
Joined: Mon Jan 27, 2014 7:16 am
Model Year: 2010

Re: Trailer Hitch Ball Mount Storage Idea

Post by Will » Wed Jun 01, 2016 6:50 am

Thats a good idea just to have two drop hitches, one with 2" and the other with 2-5/16". The truck is too tall to use a three ball correctly, my drop with the 2-5/16" stays on there but every now and then I need the 2" for the trailers at work. If it were up to me, there would only be 2-5/16" allowed. haha
2010 with 37" hooves, controlled by numerous Thuren parts and Thuren Custom King 2.5's
http://forum.powerwagonregistry.org/vie ... =13&t=2333

I only do what the majority of the 4 voices in my head tell me to. In most cases, I ignore two of them because one doesn't speak English, and I suspect the other is talking to someone else.

User avatar
Retired BLM Rig
500_Posts
500_Posts
Posts: 651
Joined: Sun Jan 31, 2016 6:51 pm
Model Year: 2008
Location: San Clemente, Ca.

Re: Trailer Hitch Ball Mount Storage Idea

Post by Retired BLM Rig » Wed Jun 01, 2016 11:04 am

I use a "Convert-A-Ball" for quick easy changes with only one mount. It has a 10,000 lb. GTW rating.
In my youth, driving tow truck, this is what we used to be able to move any trailer at a moments notice.

User avatar
Stickman
500_Posts
500_Posts
Posts: 833
Joined: Mon Nov 18, 2013 12:02 am
Model Year: 2012
Location: Wayland, MO

Re: Trailer Hitch Ball Mount Storage Idea

Post by Stickman » Thu Jun 02, 2016 1:41 am

2" and 2 5/16", costly, but very nice to have
Live To Ride, Ride To Live

2012 Ram Power Wagon - Check out my build thread to see my mods! http://forum.powerwagonregistry.org/vie ... =13&t=2187

loveracing1988
250_Posts
250_Posts
Posts: 354
Joined: Thu Jul 31, 2014 8:30 am
Contact:

Re: Trailer Hitch Ball Mount Storage Idea

Post by loveracing1988 » Fri Jun 03, 2016 11:07 am

Stickman wrote:2" and 2 5/16", costly, but very nice to have
I have one similar to this but it was only $80 or so. They have fancy stainless ones that are over $300! I would love to do this type of a mod but it would be rusted in place the first year it would be up there with all the salt on the roads.


User avatar
Bill2014
1000_Posts
1000_Posts
Posts: 1028
Joined: Fri May 09, 2014 9:03 pm
Model Year: 2014
Location: Northern NY

Re: Trailer Hitch Ball Mount Storage Idea

Post by Bill2014 » Fri Jun 03, 2016 6:52 pm

Retired BLM Rig wrote:I use a "Convert-A-Ball" for quick easy changes with only one mount. It has a 10,000 lb. GTW rating.
In my youth, driving tow truck, this is what we used to be able to move any trailer at a moments notice.
I used one of these on my mini van years ago. After the first two years, the rubber seals must have gotten sliced and it would take a few minutes to switch the balls. I swap tongues in about 10 seconds. And the convert-a-ball isn't rated high enough for my PowerWagon and trailer. :D
2014 Power Wagon Laramie
Titan V5 2.5" Receiver Pintle Hook
Warn wireless winch controller
.188" DOM White Knuckle Rock Sliders
Locker Bypass & Nanny Kill Switch

Moab 2006

Colibri
1000_Posts
1000_Posts
Posts: 1611
Joined: Mon Jun 08, 2015 5:44 pm
Model Year: 2009

Re: Trailer Hitch Ball Mount Storage Idea

Post by Colibri » Fri Jun 03, 2016 8:30 pm

Swapping tounges is easier than swapping balls eh? :rofl:
Central Texas and Houston area
2009 5.7 auto quadcab
Carli 3” coils deaver leafs 3” kings with 4 tube bypass rear and fr/rr hydro bumps
Howe steering pump and gear with hydraulic ram assist
Custom tube bumpers and white knuckle sliders
Creative fab trussed axle. rem polished and cryoed 5.13 gears with arb lockers fr/rr
Sharadon stage 2 545rfe with 3000 stall edge converter
Lots of other stuff lol

User avatar
Retired BLM Rig
500_Posts
500_Posts
Posts: 651
Joined: Sun Jan 31, 2016 6:51 pm
Model Year: 2008
Location: San Clemente, Ca.

Re: Trailer Hitch Ball Mount Storage Idea

Post by Retired BLM Rig » Sat Jun 04, 2016 1:22 pm

Colibri wrote:Swapping tounges is easier than swapping balls eh? :rofl:
:rofl: :rofl:

Don't get me wrong, I do like the new adjustable hitch inserts (as shown above), unfortunately they weren't available 25 years ago when I bought mine. I do like the new ones with the built in tongue weight scale, I may need to upgrade. :cash:

Colibri
1000_Posts
1000_Posts
Posts: 1611
Joined: Mon Jun 08, 2015 5:44 pm
Model Year: 2009

Re: Trailer Hitch Ball Mount Storage Idea

Post by Colibri » Sat Jun 04, 2016 6:03 pm

Indeed, I've been eyeing a weighsafe hitch for awhile now as well. Taking the guess work out of tounge weight is really nice. It uses proprietary hitch balls though
Central Texas and Houston area
2009 5.7 auto quadcab
Carli 3” coils deaver leafs 3” kings with 4 tube bypass rear and fr/rr hydro bumps
Howe steering pump and gear with hydraulic ram assist
Custom tube bumpers and white knuckle sliders
Creative fab trussed axle. rem polished and cryoed 5.13 gears with arb lockers fr/rr
Sharadon stage 2 545rfe with 3000 stall edge converter
Lots of other stuff lol
